Specifications
SR NO | PARTICULARS | FLY ASH BRICK PLANT ( FBP 1200 ) MODEL |
1 | Bricks Press Type | Automatic Hydraulic Bricks Press With Hi-Tech Prefill Technology. |
2 | Bricks Press Body | Heavy Duty Window type Body Fabricated M S Plate by CNC Plasma Cutting Machine. |
3 | Brick Production Ratio | 1100 – 1200 Bricks/Hour |
4 | Brick per stroke | 4 Brick |
5 | Bricks Size in (mm) | 230 (L) X 110 (W) X 75 (H) – Size Option Available |
6 | Bricks Press Tonnage | 40 MT |
7 | Palletizer system | Palletizer system |
8 | Pallet Feeding System | Automatic |
9 | Pallet Use in Plant | 50 Nos |
10 | Pallet Size | 355mm x 585mm x 19 mm – PVC/Wooden Pallet |
11 | mixer type | High Speed Pan Mixer with Planetary Gear |
12 | mixer capacity | 300 kg Max. Per Batch. |
13 | pan mixer motor | 5 HP / 3.75 KW |
14 | Pan Mixer Gear Box | Planetary Gear Box |
15 | Mixer Speed | 26 – 28 RPM |
16 | Mixing Arms | 2 Nos. per Mixer |
17 | Crushing Rollers | 2 Nos. per Mixer |
18 | Pan Mixer Feeding | Manual / Automatic Feeding Available as Optional |
19 | Pan Mixer Gate | Manual / Hydraulic Gate Available as Optional |
20 | Pan Mixer Water Automation | Available as Optional ( Additional cost ) |
21 | Hydraulic Motor | 10 HP / 7.5 KW |
22 | Hydraulic Valves | Hydrank German Make 240 Volt |
23 | High Pressure Pump | Hydrank /Veljan German Make VAN Pump |
| | |
24 | High Flow Pump | Hydrank /Veljan German Make VAN Pump |
25 | Oil Cooling system | Water Cooling |
26 | Control Panel | Delta Make : P L C Based Control Panel With HMI Display |
27 | Men Power | 1 – Operator , 7 – labor |
28 | total power | 18.5 HP / 13.87 KW |
29 | Machine warranty | 1 Year |
30 | Shed Area in Feet | 40 (L) X 20(W) X 22(H) |

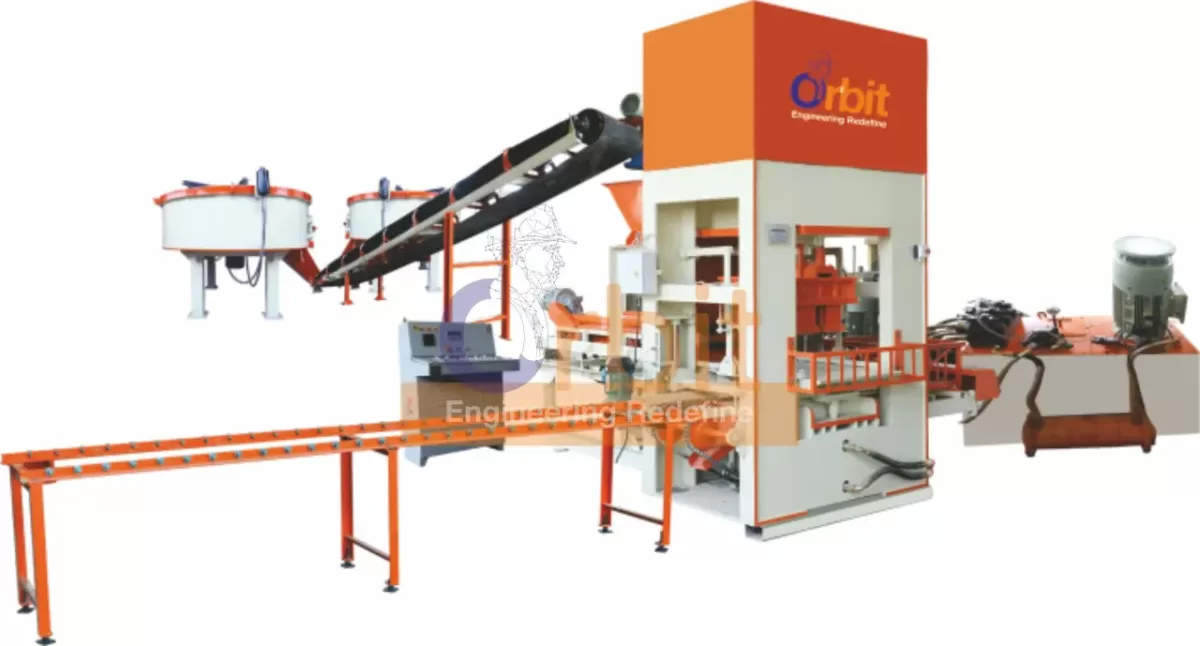

We have pointed out a particular situation in the market by offering a high-performance scope of the fly ash brick-making machine. This fly ash brick making machine is manufactured with the utmost precision using unmatched class factor inputs sourced from approved market traders following established industry standards. Our Automatic fly ash brick plant 1200 is deeply recognized for its durable development, amazing workmanship, erosion-safe elements, and easy-to-understand interface.
Offering the full line of semi / fully programmed fly rubble block making machines, semi / fully programmed cobblestone block making machine, extras for square and brick machines, molds, etc. Ash bricks, paver molds, and grid tiles. Merged in 2011, we have cut a specialty as a presumed Manufacturer, Supplier, and Exporter in the market. We act seriously following different established value limits that have allowed us to control our permanence worldwide. The trust and certainty of our clients have led us to continue offering subjective scope.
