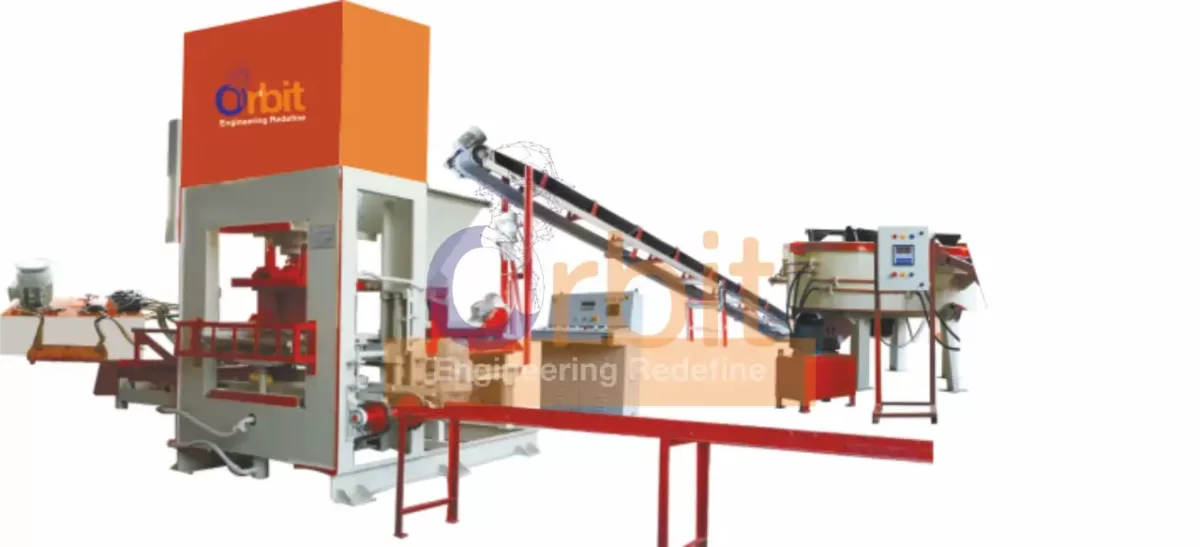

Automatic fly ash brick plant 1800
Specifications
| SR NO | PARTICULARS | FLY ASH BRICK PLANT ( FBP 1800 ) MODEL |
| 1 | Bricks Press Type | Automatic Hydraulic Bricks Press with hi-tech Prefill Technology. |
| 2 | Bricks Press Body | Heavy Duty Window type Body Fabricated M S Plate by CNC Plasma Cutting Machine. |
| 3 | Brick Production Ratio | 1700 – 1800 Bricks/Hour |
| 4 | Brick per stroke | 6 Brick |
| 5 | Bricks Size(mm) | 230 (L) X 110 (W) X 75 (H) – Size Option Available |
| 6 | Bricks Press Tonnage | 60 MT |
| 7 | Portable Type | Palletizer system |
| 8 | Pallet Feeding System | Automatic |
| 9 | Pallet Use in Plant | 40 Nos |
| 10 | Pallet Size | 475mm x 585mm x 19mm – PVC/Wooden Pallet |
| 11 | Mixer Type | High Speed Pan Mixer with Planetary Gear |
| 12 | Mixer Capacity | 500 kg Max. per Batch.. |
| 13 | Pan Mixer Motor | 7.5 HP / 4.28 KW |
| 14 | Pan Mixer Gear Box | Planetary Gear Box |
| 15 | Mixer Speed | 26 – 28 RPM |
| 16 | Mixing Arms | 2 Nos. per Mixer |
| 17 | Crushing Rollers | 2 Nos. per Mixer |
| 18 | Pan Mixer Feeding | Manual / Automatic Feeding Available as Optional |
| 19 | Pan Mixer Gate | Manual / Hydraulic Gate Available as Optional |
| 20 | Pan Mixer Water Automation | Available as Optional ( Additional cost ) |
| 21 | Hydraulic Motor | 15 HP / 11.25 KW |
| 22 | Hydraulic Valves | Hydrank Make / 240 VAC |
| 23 | High Pressure Pump | Hydrank /Veljan German Make VAN Pump |
| 24 | High Flow Pump | Hydrank /Veljan German Make VAN Pump |
| 25 | Oil Cooling system | Water Cooling |
| 26 | Control Panel | Delta Make : P L C Based Control Panel With HMI Display |
| 27 | Men Power | 1 – Operator , 7 – labor |
| 28 | Total Power | 26 HP / 19.5 KW |
| 29 | Machine warranty | 1 Year |
| 30 | Shed Area in Feet | 40 (L) X 20(W) X 22(H) |
| Note: All of the Specifications, Dimensions & Designs are Subjected to change without Prior Notice. | ||
| Please confirm the details at the time of Order Finalization. Check Commercial Terms & Condition. | ||
