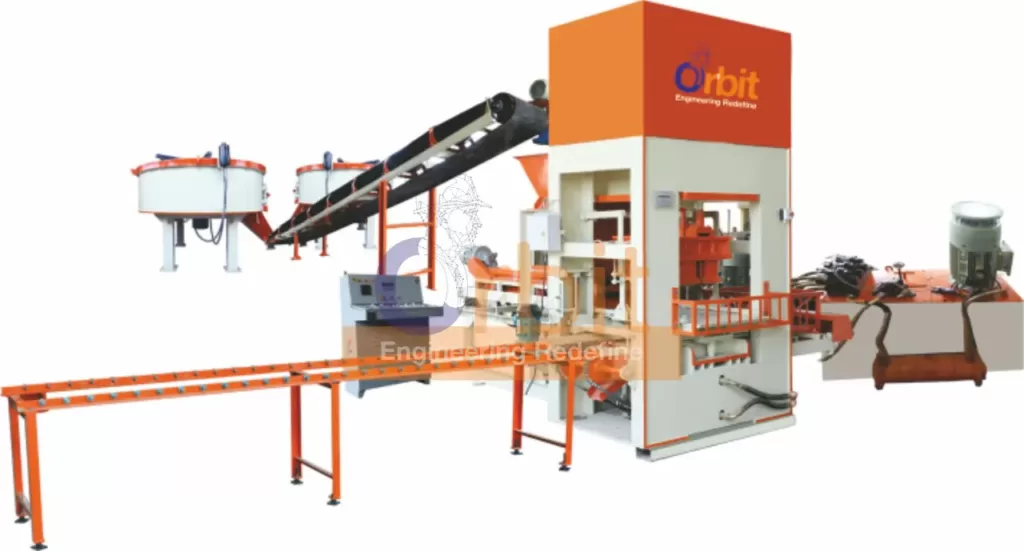

Automatic fly ash brick plant 2500
Specifications
| sr No | particulars | Fly Ash Brick Plant ( FBP 2500 ) Model |
|---|---|---|
| 1 | Bricks Press Type | Automatic Hydraulic Bricks Press with hi-tech Prefill Technology. |
| 2 | Bricks Press Body | Heavy Duty Window type Body Fabricated M S Plate by CNC Plasma Cutting Machine. |
| 3 | Brick Production Ratio | 2300 – 2500 Bricks/Hour |
| 4 | Brick per stroke | 10 Brick |
| 5 | Bricks Size(mm) | 230 (L) X 110 (W) X 75 (H) – Size Option Available |
| 6 | Bricks Press Tonnage | 100 MT |
| 7 | Palletizer system | portable type |
| 8 | Pallet Feeding System | automatic |
| 9 | Pallet Use in Plant | 100 Nos |
| 10 | pallet size | 750mm x 650mm x 20 mm – PVC/Wooden Pallet |
| 11 | mixer type | High Speed Pan Mixer with Planetary Gear |
| 12 | Mixer Capacity | 350 Kg (2 Nos.) |
| 13 | Pan Mixer Motor | 5 HP / 2.85 KW |
| 14 | Pan Mixer Gear Box | Planetary Gear Box |
| 15 | Mixer Speed | 26 – 28 RPM |
| 16 | Mixing Arms | 2 Nos. per Mixer |
| 17 | Crushing Rollers | 2 Nos. per Mixer |
| 18 | Pan Mixer Feeding | Manual / Automatic Feeding Available as Optional |
| 19 | Pan Mixer Gate | Manual / Hydraulic Gate Available as Optional ( Additional cost ) |
| 20 | Pan Mixer Water Automation | Available as Optional ( Additional cost ) |
| 21 | Hydraulic Motor | 15 HP / 7.5 KW |
| 22 | Hydraulic Valves | Hydrank Make / 240 VAC |
| 23 | High Pressure Pump | Hydrank /Veljan German Make VAN Pump |
| 24 | High Flow Pump | Hydrank /Veljan German Make VAN Pump |
| 25 | Oil Cooling system | Water Cooling |
| 26 | Control Panel | Delta Make : P L C Based Control Panel With HMI Display |
| 27 | Men Power | 1 – Operator , 9 – labor |
| 28 | Total Power | 1 – Operator , 9 – labor 28 Total Power 31 HP / 23.25 KW |
| 29 | Machine warranty | 1 year |
| 30 | Shed Area in Feet | 50 (L) X 30(W) X 22(H) |
| Note: All of the Specifications, Dimensions & Designs are Subjected to change without Prior Notice. Please confirm the details at the time of Order Finalization. Check Commercial Terms & Condition. | ||
We are one of the Fully Automatic significant square-making machine creators/suppliers in the world. We gathering and supply the common quality Automatic Concrete Block Plant using the best Fully Automatic generous square-making machine. Benefitting from our refined collecting office, we can plan and encourage an unmatched quality extent of Automatic Concrete Block Plant. Known for their optimal show and efficiency, these are broadly used in the advancement business. Our range is open in different sizes and specifics to meet the variegated necessities of clients. we are an expert in the Automatic Concrete square plant. we are giving the best quality Fully Automatic square-making machine. we are ace in Fully Automatic Fly Ash Brick Plant.
