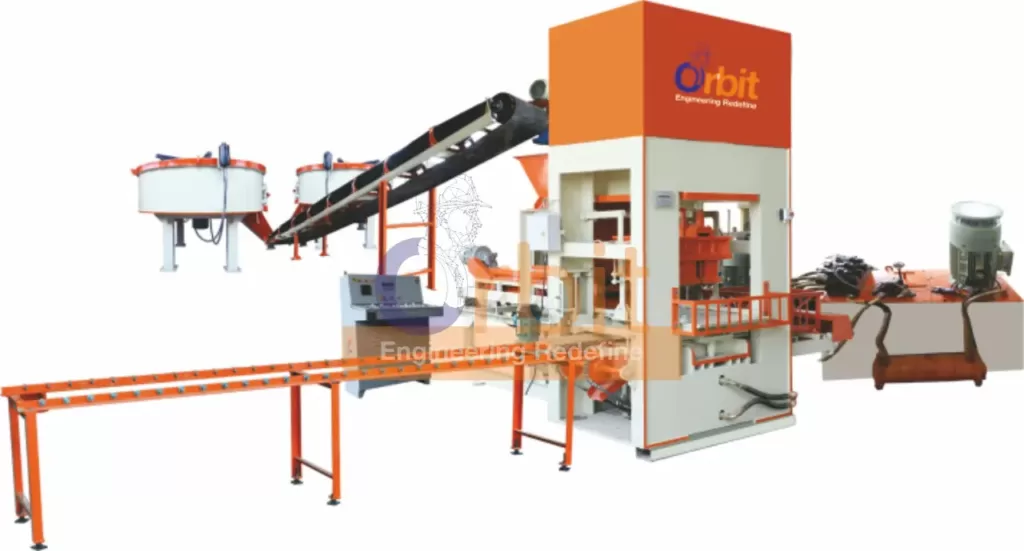

Automatic fly ash brick plant 4000

Specifications
sr NoparticularsFly Ash Brick Plant ( FBP 4000 ) Model
1 Bricks Press TypeAutomatic Hydraulic Bricks Press with hi-tech Prefill Technology.
2Bricks Press BodyHeavy Duty Window type Body Fabricated M S Plate by CNC Plasma Cutting Machine.
3Brick Production Ratio4000 Bricks/Hour Max.
4 Brick per stroke 18 Brick
5Bricks Size(mm)230 (L) X 110 (W) X 75 (H) – Size Option Available
6Bricks Press Tonnage180 MT
7Palletizer systemPortable Type
8Pallet Feeding SystemAutomatic
9Pallet Use in Plant80 Nos
10Pallet Size840mm x 840mm x 25 mm – wooden pallet
11 Mixer TypePan Mixer – 2 Nos
12Mixer Capacity750 kg Max. per Batch.
13 Pan Mixer Motor 10 HP / 5.71 KW
14Pan Mixer Gear BoxPlanetary Gear Box
15Mixer Speed 26 – 28 RPM
16Mixing Arms2 Nos. per Mixer
17Crushing Rollers2 Nos. per Mixer
18Pan Mixer Feeding1Manual / Automatic Feeding Available as Optional
19Pan Mixer GateManual / Hydraulic Gate Available as Optional
20Pan Mixer Water AutomationAvailable as Optional ( Additional cost )
21Hydraulic Motor30 HP / 17.41 KW
22Hydraulic ValvesYUKEN Make / 240 VAC
23High Pressure PumpYUKEN Make VAN Pump
24High Flow PumpyUKEN Make VAN Pump
25Oil Cooling systemWater Cooling
26Control PanelDelta make : P L C Based Control Panel
27Men Power 2 – Operator , 15 – labor
28Total Power58 HP / 43.5 KW
29 Machine warranty1 Year
Note: All of the Specifications, Dimensions & Designs are Subjected to change without Prior Notice. Please confirm the details at the time of Order Finalization. Check Commercial Terms & Condition.


e are providing complete turnkey projects for fly ash bricks, concrete blocks (hollow / solid), interlocking concrete / paving blocks, curbs, etc., with a limit of 3,000-120,000 PCs / day with plants Auto Batching and Auto Clave. Our Automatic fly ash brick plant 4000, can produce blocks of any shape and size. “And so on and our machines have the ability to do it!” The convincing execution of the hydraulic and vibration innovations of our machines ensures maximum levels of consistency and quality.

The offered package is definitely manufactured using predominant grade material and in similarity to commercial standards. Established in Mehsana (India), we are making top-notch items accessible in every nook and corner of the country. Automatic fly ash brick plant 4000,.

Detail: • Higher High Tension Build Weight: 70 • Power Required: 18 hp • Build Limit: 6 to 8 Portable Flying Debris Blocks. (in one activity) • Facility: flying debris blocks making single-feeder machines for creating flying debris blocks • Production: flying debris blocks from 4000 to 6000 blocks in an 8 hour shift) • Size of bricks : 225 x 150 x 80 mm, 225 x 100 x 80 mm • Oil tank limit 250 liters
